Modular Mechatronic System with Industry 4.0 (mMS4.0)


Class
MITacademy Professional Training

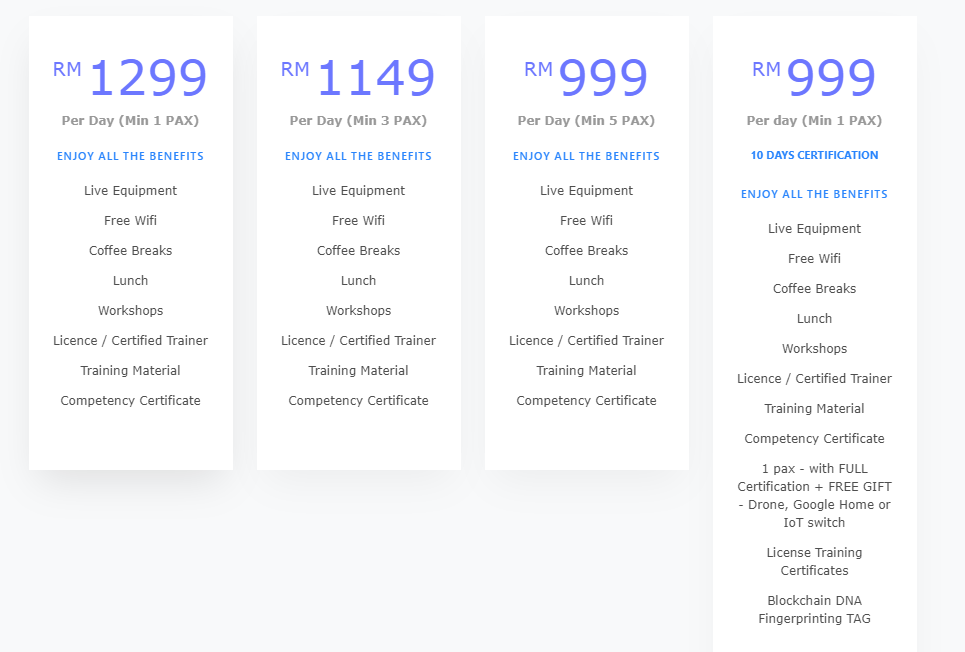

Purchase for RM9990

BOSCH REXROTH mMS4.0 & IoT

Bosch Rexroth is one of the leading specialists in drive and control technologies. The company supplies tailored solutions for driving, controlling and moving.









Here is the class outline:

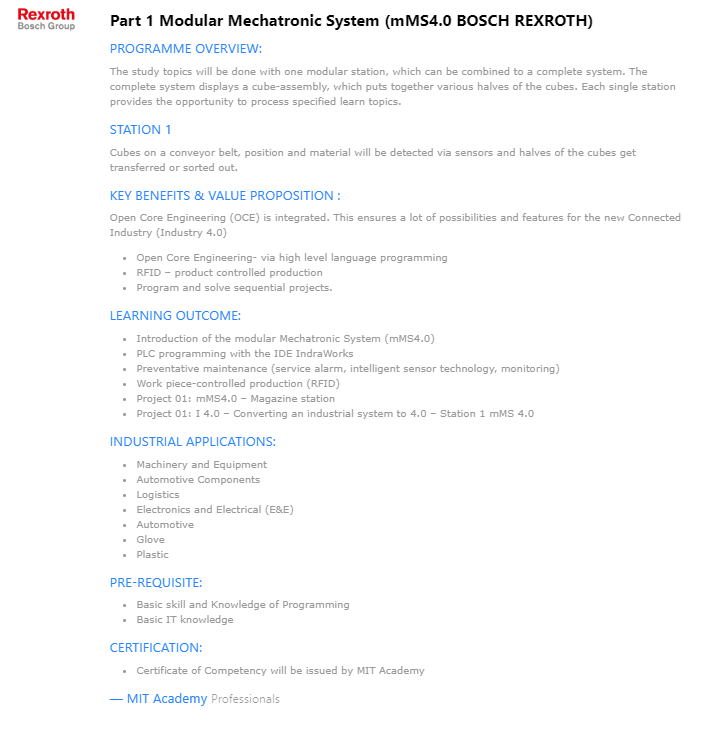

1. PART 1- mMS4.0

17 sections
Project 01 mMS4.0 – Magazine station
Project 01 mMS4.0 – Magazine station - Submit
Project 02: mMS4.0, St. 2 - Observation, analysis and documentation
Project 03: Basic technologies of station 2
Project 04: Design of the PLC project mMS 4.0 – Station 2
Project 05: PLC program to reset the emergency stop circuit
Project 06: PLC program for the pinning unit
Project 07: PLC program for portal – load press
Project 08: PLC program - Press with two-hand activation
Project 09: PLC program for portal – unload press
Project 10: Programming the entire sequence of station 2
Project 11: Design of the PLC project mMS 4.0 – Station 3
Project 12: Commissioning of drives mMS 4.0 - Station 3
Project 13: Setting and moving the axes - Station 3
Project 14: Monitoring and controlling drive controllers using the PLC – Connecting power
Project 15: Monitoring and controlling drive controllers using the PLC – Approaching a point
Project 16: Monitoring and controlling drive controllers using the PLC

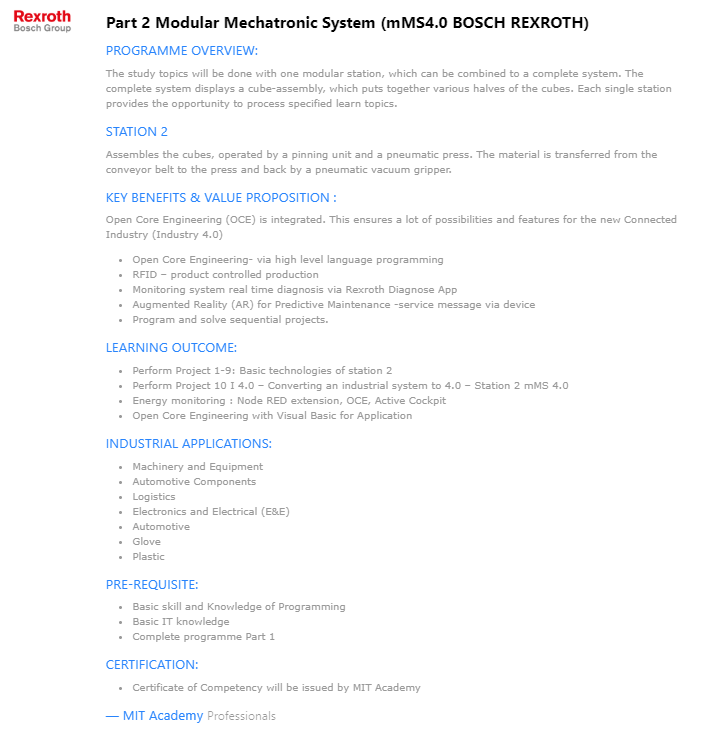

2. PART 2 - mMS4.0

8 sections
Project 01: I 4.0 – Converting an industrial system to 4.0 – Station 1 mMS 4.0
Project 02: I 4.0 – Converting an industrial system to 4.0 – Station 2 mMS 4.0
Project 03: I 4.0 – Converting an industrial system to 4.0 – Station 3 mMS 4.0
Project 04: Networking the entire system and communication test
Project 05: Integration of the RFID communication into station 1
Project 06: Integration of the RFID communication into station 2
Project 07: Integration of the RFID communication into station 3
Project 08: Transferring data via OPC UA server

3. VIDEO mMS4.0

4 sections
BOSCH REXROTH IR4.0
PRODUCTION LINE BOSCH REXROTH
INSTALLATION
SEQUENCE

4. SLIDE mMS4.0

7 sections
IR4.0 OVERVIEW
IR4.0
modular Mechatronic System 4.0
ATP-I4.0-mMS4.0_V0111
Automation_mMS_St3
Automation_NodeRed_MB
Automation_Application_MB

5. ASSESSMENT

Theory and Practical Assessment

3 sections
THEORY ASSESSMENT
PROGRAM THE SEQUENCE AND DASHBOARD OF mMS4.0
MQTT QUIZ
